DESCRIPTION

Overview

Basic Info.

Model NO.	HE-HS/SF
Transport Package	Carton Package
Trademark	Avant Sports
Origin	Shenzhen, China
Production Capacity	400000 PCS/Year

Product Description

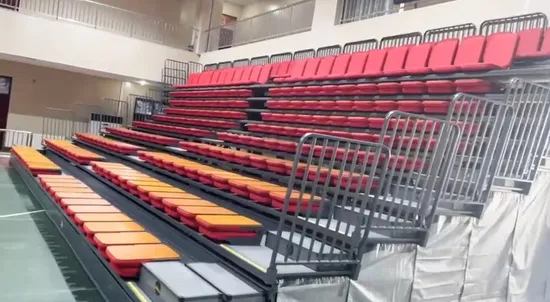

System Introduction1. The bottom structure of the retractable seating is designed with upright support. The upright main support cooperates with the cable-stayed square pass and the front and rear beams to form a stable frame structure, which can evenly distribute the load of the stand; the overall structure meets the load-bearing requirement of 5000N/m2, and can be made up to 20 rows.2. The front beam(nosing tread) and the rear beam are integrally formed by rolling high-quality galvanized steel sheets, with reasonable cross-section and uniform load.3. The decking of the retractable seating are made of high-quality plywood, and the surface is covered with fireproof, non-slip and wear-resistant PVC, which fully ensures the safety of the audience.4. The guardrail of the retractable seating is a plug-free safety inclined guardrail. The guardrail is connected to the bottom frame. When the stand is closed, the guardrail does not need to be disassembled. It has high safety and is easy to disassemble.5. The drive of the retractable seating adopts independent adjustable four-wheel drive; it can work in harsh environments such as high temperature, humidity, dust, pollution, etc. The drive system can manually adjust the running direction to avoid deviation and use more stably.6. All metal parts in the retractable seating system are treated with electrostatic powder spraying after sandblasting and polishing, which fully guarantees the anti-corrosion and anti-rust effect.
Product configuration:

Maximum rows	20rows
Bleacher operation	motorized/manual
Decking surfacing	PVC/wood surfacing/carpet
Staircase	Wood staircase with aluminum covering and flourcent belt
Side riling	Selfstoring/vertical demountable
Standard power	380V
Side drape	PVC
Seat folding way	Manual/semi automatic/automatic
Seat model	HS-SF

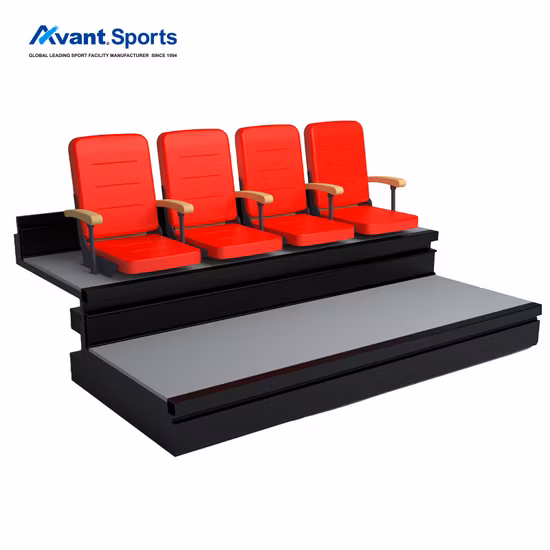

1.Model:Hishine Front-mounted (HS-SF/Q)2.Seat Size:Cushion Height406mm,Back Height565mm,Seat Depth633mm,Seat Center Space510mm
3.Design Notes:Scope of Application: stadiums, gymnasiums, cultural and sports centers, exhibition halls and other places.Seat/Backrest Upholstery Part: 12mm high-quality solid wood multi-layer board is used as the inner lining, which is formed by cold foaming of polyurethane high-resilience material, covered with international famous brand fabrics, or can choose imitation leather and genuine leather.Back panel decorative board: 10mm thick high-quality solid wood multi-layer board is hot-pressed and integrally formed, with solid wood veneer on the outside, and the surface is sprayed with environmentally friendly paint. Armrest: Made of solid wood, the surface is sprayed with environmental protection paint, the surface is comfortable and not dry and cold, and it opens with the seat being folded.Seat support structure: It is made of high-quality steel through cutting, bending and powder spraying. The unique rib design can greatly meet the strength of the seat. The bracket has passed the test of resistance to salt spray, salt bath, impact resistance, and heat resistance. Na clothing ability Strong, longer service life.Folding method: manual folding. The folding seat of the stand will automatically tip over, and it needs to be opened manually when in useOptional accessories: armrest(4) Product features:1. High comfortThe backrest of the seat board is designed with extra-thick sponge to maximize the comfort.2. Anti-dirty, high-grade The back is equipped with a decorative panel to prevent the dirt caused by the seats of the rear passengers, which is easy to clean and has a higher grade. 3. Factory prefabricated assemblyThe seat is pre-assembled in the factory and installed directly on site, which greatly increases the installation efficiency4. Front installation:Front-mounted installation is convenient for later maintenance of the seats and stands5. Can be equipped with armrest design: Solid wood armrests can be configured to further increase the comfort of the seat, and the armrests can be retracted in conjunction with the backrest
